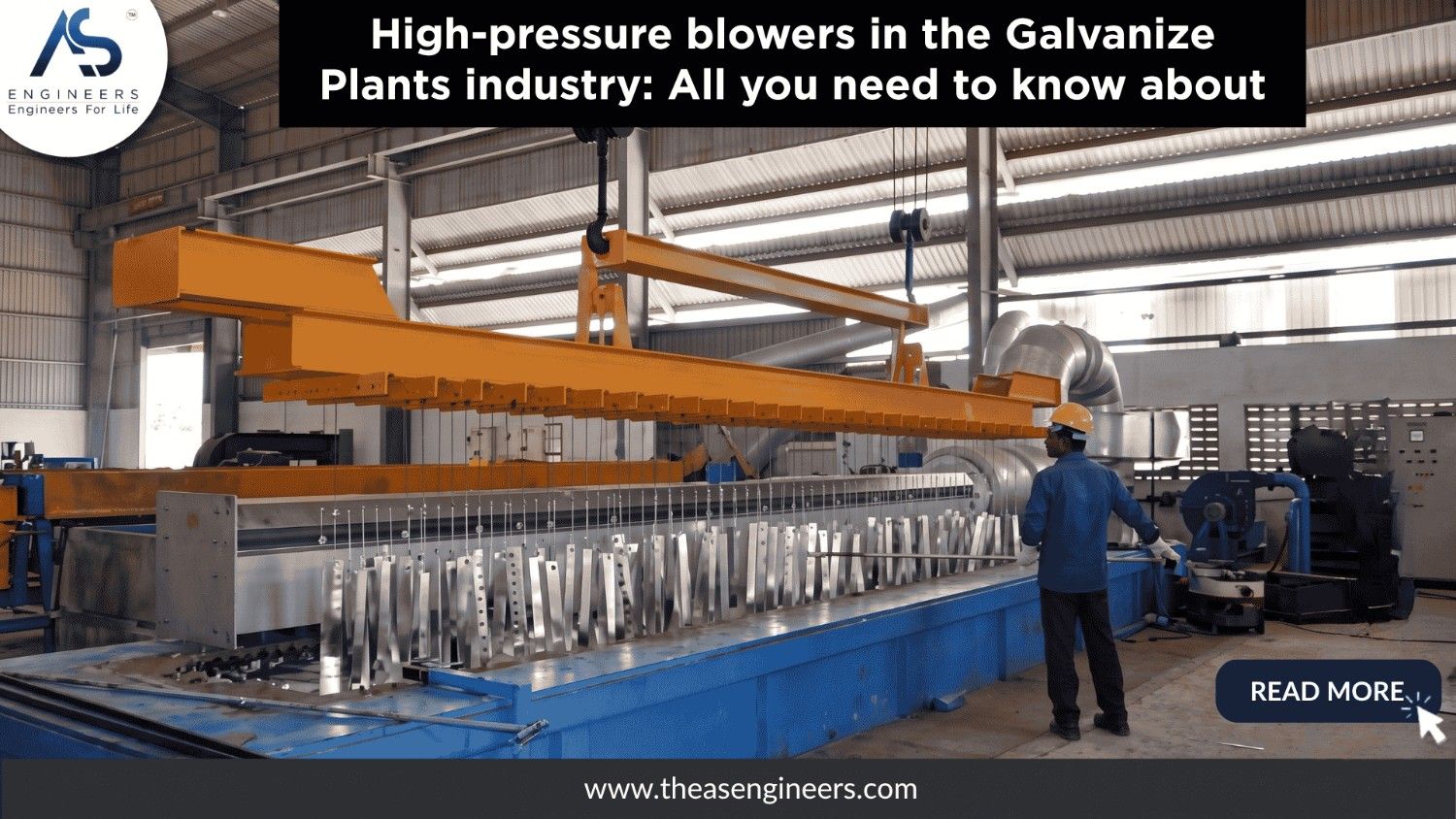

High pressure blowers in galvanize plants are used for fume extraction, flux drying, ventilation, scrubber suction, kettle-area exhaust, and process air movement. The main selection mistake is treating the blower as a simple air mover instead of matching it to fume load, duct resistance, corrosive vapours, temperature, dust, and enclosure design.
In hot-dip galvanizing, steel passes through surface preparation, galvanizing, and inspection stages. Surface preparation includes degreasing, chemical cleaning, and fluxing, while the galvanizing stage immerses steel in molten zinc. The zinc bath is commonly maintained around the mid-400°C range depending on the process and specification.
This matters because the blower is not handling clean factory air in many areas. Around pickling, fluxing, drying, and zinc dipping, the air can carry acidic fumes, zinc oxide, ammonium chloride, zinc chloride, moisture, and fine particulate. If the blower is undersized, fume escapes into the shed. If it is oversized without duct balancing, it may disturb process stability, increase energy cost, and create unnecessary noise.
For plant engineers and procurement teams, the correct question is not “What HP blower do we need?” The better question is: “What airflow and static pressure are required at each capture point after considering hood design, duct length, scrubber resistance, temperature, and future fouling?”
AS Engineers manufactures industrial centrifugal blowers, including high pressure radial blade, exhauster radial, high temperature plug, backward curved, backward inclined, and exhauster air handling designs, with verified blower ranges from 300 CFM to 200,000+ CFM, pressure up to 1700 mmWG, fan speed from 300 RPM to 4500 RPM, and motor power from 0.5 HP to 500 HP.
For background selection logic, you can also review the guide on understanding the science of high pressure blower design.
Where Are Blowers Used Inside a Galvanizing Plant?
Answer: Blowers are commonly used near pickling tanks, flux tanks, drying chambers, zinc kettle fume enclosures, scrubbers, bag filters, general ventilation points, and sometimes cooling or air knife zones depending on plant design.
A galvanizing plant has multiple air-handling duties, and each duty behaves differently.
| Galvanizing Plant Area | Blower Duty | Main Engineering Risk | Better Blower Thinking |
|---|---|---|---|
| Pickling section | Acid fume exhaust | Corrosion, mist carryover, duct leakage | Confirm MOC, scrubber resistance, and capture velocity |
| Fluxing section | Vapour and humidity control | Ammonium chloride fumes and moisture | Avoid condensation and check chemical compatibility |
| Flux drying chamber | Hot air circulation or exhaust | Uneven drying, water carryover to zinc bath | Balance airflow with temperature and drying time |
| Zinc kettle enclosure | Zinc white fume extraction | Instant fume generation during dipping | Prioritize hood/enclosure design before motor HP |
| Scrubber system | ID fan suction | Pressure drop variation as packing/nozzles foul | Select margin based on real system resistance |
| Bag filter or dust collector | Exhaust fan | Dust load and filter pressure rise | Check fan curve at clean and loaded conditions |
| General plant ventilation | Fresh air/exhaust | Heat buildup and worker comfort | Separate ventilation from process fume extraction |
The hot-dip galvanizing process can include drying before galvanizing, and some industry guidance lists drying as a formal process stage between flux treatment and galvanizing. That drying step is not only about productivity. It also reduces the risk of excess water entering the molten zinc bath.
A common buyer mistake is using one large fan for several plant zones without confirming whether every branch gets enough suction. In galvanizing plants, duct balancing matters because fume generation is not uniform. The kettle area may need strong instant capture during dipping, while pickling and fluxing need steady control of vapours and mist.
Related plant-airflow topics are covered in high pressure blowers in the air pollution control industry and high pressure blowers in the bag filter industry.
What Makes Fume Extraction Difficult in Hot-Dip Galvanizing?
Answer: Fume extraction is difficult because fumes are generated quickly at the dipping point, and their composition depends on flux chemistry, moisture, bath condition, workpiece size, enclosure design, and operating practice.
UK process guidance for hot-dip galvanizing notes that where ammonium chloride or zinc ammonium chloride type fluxes are used, fume can be created instantaneously at dipping and may include ammonium chloride, zinc oxide, zinc chloride, and steam. It also states that containment is usually done with fixed or mobile enclosures and that extractor fans should be switched on during dipping.
This is why a galvanizing fume extraction blower must be selected as part of a system. The blower cannot compensate for a poorly positioned hood, open enclosure door, leaking duct, undersized scrubber, or blocked demister. A blower may show correct RPM and motor current, but still fail at the capture point if duct static pressure is underestimated.
In practical site audits, these are the warning signs we check first:
- White fumes escaping above the zinc kettle during dipping.
- Corrosion marks near duct joints or fan casing.
- Scrubber liquid carryover near the blower inlet.
- High vibration after ash or particulate buildup.
- Unstable suction when enclosure doors open.
- Motor overloading after filter or scrubber pressure drop rises.
- Poor drying before zinc dipping, leading to spatter risk or quality issues.
For furnace-adjacent airflow logic, see high pressure blowers in the furnace industry and high pressure blowers in the hot air generator industry.
Which Type of Blower Is Best for Galvanizing Plant Applications?
Answer: Centrifugal blowers are usually preferred for galvanizing plant fume extraction, scrubber suction, and ducted industrial exhaust because they can handle higher static pressure than simple ventilation fans. The final design depends on airflow, static pressure, fume composition, temperature, dust load, MOC, and impeller type.
For galvanizing plants, these blower types are generally evaluated:
| Blower Type | Best-Fit Area | Use With Care When |
|---|---|---|
| High pressure radial blade blower | Dusty or higher-resistance exhaust systems | Efficiency is lower than some backward designs |
| Exhauster radial blower | Light dust, fumes, fresh air or exhaust duty | Heavy corrosive mist needs MOC review |
| Exhauster air handling blower | Abrasion-prone exhaust and industrial air handling | Moist acidic fumes may need special material selection |
| Backward curved blower | Cleaner high-volume airflow and efficiency-sensitive duty | Not always ideal for sticky or particulate-heavy fumes |
| Backward inclined blower | High-volume, lower-noise applications | Confirm pressure requirement before selection |
| High temperature plug blower | Hot air and furnace-ready applications | Not a default choice for acidic fume lines |
In many galvanizing plants, the fume extraction fan works with a scrubber, cyclone, bag filter, ducting, hood, damper, stack, and sometimes a fume enclosure. AS Engineers supports centrifugal blower services such as performance analysis, engineering surveys, retrofitment, repair, on-site alignment, on-site balancing, AMC, and site-based design.
For AS Engineers product-level references, review industrial centrifugal blowers, high pressure radial blade blowers, and industrial exhauster air handling blowers.
How Should You Size a Blower for a Galvanizing Plant?
Answer: Size the blower from the process side first, not from motor HP. Confirm capture point, hood or enclosure geometry, air volume, duct layout, temperature, gas density, dust or mist load, scrubber or filter pressure drop, stack requirement, and operating margin.
A useful blower RFQ for a galvanizing plant should include:
- Process area: pickling, fluxing, drying, kettle enclosure, scrubber, bag filter, or general ventilation.
- Airflow requirement in CFM or CMH.
- Static pressure requirement in mmWG or Pa.
- Gas temperature at blower inlet.
- Fume composition, including acid mist, zinc oxide, ammonium chloride, moisture, or dust.
- Duct length, number of bends, hood type, stack height, and damper locations.
- Pollution control equipment details, such as scrubber, cyclone, bag filter, or demister.
- Material of construction preference.
- Motor mounting, drive arrangement, VFD requirement, and available electrical supply.
- Site altitude and ambient temperature.
- Expected operating hours per day.
The important engineering point is that the fan curve must be checked at the real system operating point. A blower selected only on airflow may fail when scrubber packing becomes dirty or when the bag filter pressure drop increases. A blower selected only on pressure may waste energy and pull unnecessary air from the plant.
For more buyer-side selection detail, use 8 key factors to consider when choosing a high pressure blower and AS Engineers’ guide on choosing the right blower and fan impellers.
What Safety and Compliance Factors Should Buyers Check?
Answer: Buyers should check fume capture, worker exposure, corrosion resistance, safe access for maintenance, duct leakage, spark or heat risk, scrubber performance, and local emission compliance before finalizing the blower.
Zinc oxide fume is a recognized occupational exposure concern. OSHA’s chemical data page lists exposure limits for zinc oxide fume, including an OSHA PEL-TWA of 5 mg/m³ and notes related limits for dust and fume forms.
This does not mean a blower alone makes a plant compliant. Compliance depends on enclosure design, capture efficiency, scrubber or filter performance, stack design, monitoring, operating practice, and local regulations. A blower supplier can help with airflow and mechanical design, but the plant owner must validate emissions and workplace exposure through appropriate testing.
A practical rule: never approve a galvanizing plant blower only because it “runs.” Check whether it captures fumes during the worst operating condition, such as dipping large fabricated structures, double dipping, wet workpiece entry, flux variation, or enclosure door opening.
For pollution-control equipment references, see AS Engineers’ pollution control equipment, scrubber manufacturers, and bag filter solutions.
What Are the Most Common Blower Problems in Galvanize Plants?
Answer: The most common blower problems are suction loss, corrosion, vibration, impeller deposition, motor overload, noise, duct leakage, and unstable airflow after scrubber or filter pressure changes.
Here is a practical troubleshooting matrix:
| Symptom | Likely Cause | Test to Confirm | Corrective Action |
|---|---|---|---|
| Fumes escaping from kettle enclosure | Low capture velocity or open enclosure leakage | Smoke test, static pressure reading, door condition check | Rebalance ducting, improve hood/enclosure, review fan capacity |
| Motor overload | System resistance lower or higher than design, wrong damper setting, incorrect fan point | Motor current and fan curve check | Adjust damper/VFD, verify impeller and RPM |
| High vibration | Deposits on impeller, bearing issue, misalignment, uneven wear | Vibration analysis and inspection | Clean impeller, balance fan, align drive |
| Corrosion on casing or duct | Wrong MOC or condensation of acidic fumes | Visual inspection and condensate check | Review MOC, insulation, drain points, operating temperature |
| Low suction after months of running | Scrubber packing, mist eliminator, or bag filter resistance increased | Differential pressure measurement | Clean/replace media and recheck fan point |
| Excessive noise | High velocity ducting, poor foundation, wrong fan selection | Noise and velocity checks | Add silencer, correct duct design, review fan selection |
The hidden cost of blower problems is not only maintenance. In galvanizing plants, poor fume control can affect worker comfort, building corrosion, crane life, visibility, and compliance confidence.
For maintenance support, read troubleshooting common issues with high pressure blowers and expert tips for maintaining high pressure blowers.
When Should You Not Choose a Standard Blower?
Answer: Do not choose a standard blower when the application involves corrosive acid fumes, high moisture, high particulate loading, hot gas, scrubber carryover risk, abrasive dust, or strict emission-control duty without engineering validation.
Standard blowers are often acceptable for clean ventilation. Galvanizing plants are different. Pickling, fluxing, drying, and zinc fume extraction can each demand different fan material, impeller design, sealing, drain, access door, bearing location, and drive arrangement.
Avoid standard selection in these situations:
- Acid mist is present near the blower inlet.
- Scrubber liquid carryover can reach the impeller.
- Zinc oxide or flux dust can build up on blades.
- Gas temperature is above normal ambient duty.
- The blower must run continuously with critical emission-control responsibility.
- The plant uses long duct lines with multiple bends and dampers.
- The site needs future capacity expansion.
- There is a history of vibration, shaft failure, impeller wear, or repeated bearing replacement.
For demanding hot-air or furnace-adjacent duty, AS Engineers’ high temperature plug blower may be relevant after confirming actual gas temperature and process conditions.
What Should a Galvanizing Plant Send Before Requesting a Blower Quote?
Answer: Send process layout, airflow duty, static pressure, gas temperature, fume composition, duct layout, pollution-control equipment details, operating hours, and photos or drawings of the actual capture points.
A strong RFQ saves time and reduces wrong selection risk. For a galvanizing plant, the quote request should mention whether the blower is for kettle fume extraction, acid pickling fume extraction, flux drying, scrubber suction, bag filter exhaust, cooling, or general ventilation.
The buyer should also share whether the plant is batch hot-dip galvanizing, tube galvanizing, wire galvanizing, sheet galvanizing, or a custom line. Batch galvanizing and continuous processes do not always need the same airflow strategy.
AS Engineers can review blower duty based on application, density, temperature, dust load, humidity, site location, altitude, material of construction, impeller blade design, and motor mounting arrangement.
FAQs
1. What is the best blower for a galvanizing plant?
The best blower depends on the duty. For fume extraction and scrubber suction, centrifugal blowers are commonly preferred because they can handle duct resistance and static pressure. For hot air or drying duty, the temperature and air volume decide the blower type. Always validate fume composition, pressure drop, and MOC before selection.
2. Can one blower handle the full galvanizing plant?
One blower can serve multiple points only if the duct system is properly engineered and balanced. In many plants, separating pickling, fluxing, kettle fume extraction, drying, and general ventilation gives better control. One oversized common blower can create unstable suction if dampers, branches, and pressure losses are not calculated correctly.
3. Why does a galvanizing fume extraction blower lose suction over time?
Suction loss usually happens because scrubber packing, mist eliminators, ducts, filters, or impellers accumulate deposits. Corrosion, leakage, damper movement, and worn belts can also reduce performance. Check differential pressure, motor current, RPM, duct leakage, and impeller condition before replacing the blower.
4. Is FRP, SS, or MS better for galvanizing plant blowers?
Material selection depends on the gas handled. Acidic fumes and wet corrosive air may require FRP, SS, coating, lining, or special construction. Dry hot air or general exhaust may allow a different MOC. The wrong material can cause casing corrosion, impeller damage, and unplanned shutdowns.
5. Does a higher HP motor improve fume capture?
Not necessarily. Fume capture depends on airflow at the hood, duct design, static pressure, enclosure design, and system resistance. A higher HP motor without correct fan selection can waste energy or overload the system. The fan curve and actual plant pressure drop are more important than motor HP alone.
A galvanizing plant blower should be selected from the process condition, not from guesswork. Before finalizing any high pressure blower for kettle fume extraction, flux drying, scrubber suction, bag filter exhaust, or hot air circulation, confirm the airflow, static pressure, fume composition, temperature, MOC, duct layout, and maintenance access.
For site-specific blower selection, retrofitment, alignment, balancing, repair, AMC, or custom centrifugal blower support, connect with AS Engineers for centrifugal blower services.
