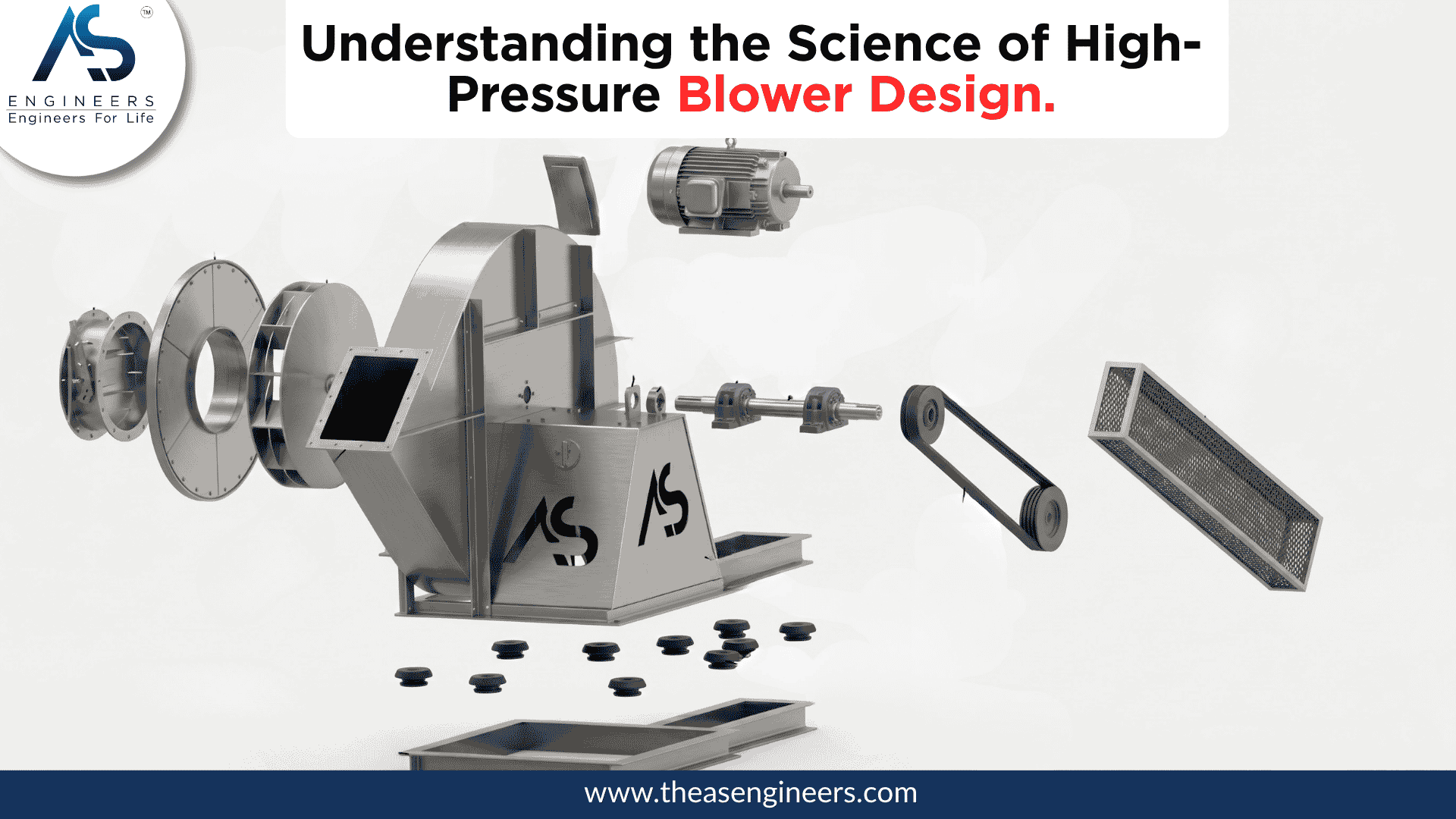

High pressure blower design controls how air or gas is accelerated, converted into pressure, handled through the casing, and delivered into the real plant system. A good design does not start with motor HP. It starts with airflow, static pressure, gas density, temperature, dust load, material of construction, impeller type, duct resistance, and the operating point.
In industrial plants, the expensive mistake is not always buying a blower that is too small. Many problems come from selecting a blower that looks powerful on paper but operates away from its efficient zone after installation. That can create excess vibration, motor overload, noise, low process airflow, premature bearing wear, and higher power consumption.
A high pressure blower is normally selected for duties where air must move against resistance, such as bag filters, scrubbers, furnaces, dryers, pneumatic conveying lines, boiler systems, cement plants, chemical plants, and pollution control systems. For broader application mapping, see this guide on high pressure blowers in industrial settings.
AS Engineers’ centrifugal blower range covers airflow from 300 CFM to 200,000+ CFM, pressure up to 1700 mmWG, fan speeds from 300 RPM to 4500 RPM, and motor power from 0.5 HP to 500 HP. These ranges are useful only when matched with the actual process condition. Final design still depends on site data, gas properties, ducting, temperature, dust, humidity, altitude, MOC, impeller design, and motor mounting arrangement.
Why Is the Impeller the Heart of High Pressure Blower Design?
The impeller is the main energy-transfer component in high pressure blower design. It takes mechanical energy from the motor and transfers it to the air or gas stream. Blade angle, blade width, impeller diameter, inlet geometry, outlet velocity, and balancing quality decide how the blower behaves under pressure.
A common buyer mistake is treating all impellers as interchangeable. They are not. A backward curved impeller may be suitable for clean air and energy-sensitive duty. A radial blade impeller may be better where dust load, particles, or heavy-duty pressure resistance are involved. A high temperature plug blower design may be needed when the fan is close to furnace, kiln, dryer, or oven service.
For detailed impeller selection, refer to AS Engineers’ guide on blower and fan impellers for materials, designs and applications.
| Design Factor | What It Changes | Buyer Risk If Ignored | Data Required Before Selection |
|---|---|---|---|
| Impeller type | Pressure capability, efficiency, dust tolerance | Wrong airflow, wear, motor overload | Application, dust load, pressure |
| Impeller diameter | Air delivery and pressure generation | Overspeed or inefficient operation | Required CFM and mmWG |
| Blade geometry | Efficiency curve and operating stability | Noise, vibration, unstable performance | Duty cycle and gas condition |
| MOC | Corrosion, abrasion and temperature resistance | Fast wear or unsafe operation | Gas composition, temperature, dust |
| Balancing quality | Vibration and bearing life | Bearing failure, foundation vibration | RPM, impeller size, site duty |
| Drive arrangement | Maintenance access and speed control | Alignment issues, energy loss | Space, motor position, VFD need |
If your plant handles clean process air, a backward curved blower may fit the duty. If the application involves higher pressure, dust, or demanding industrial service, a high pressure radial blade blower should be evaluated.
How Do Airflow, Static Pressure and System Resistance Work Together?
Airflow and pressure cannot be selected separately. Airflow is the volume of air the process needs. Static pressure is the resistance the blower must overcome through ducting, bends, filters, scrubbers, dampers, cyclones, heat exchangers, stacks, and process equipment.
The blower does not create useful performance in isolation. It operates at the point where the blower curve meets the system resistance curve. If the duct layout changes, the operating point changes. If filters choke, dust accumulates, scrubber pressure drop increases, or dampers remain partly closed, the blower may move away from its intended point.
This is why “same HP, same RPM” is not a safe replacement rule. Two blowers with similar motor power can behave very differently if impeller geometry, casing design, inlet condition, outlet direction, and system resistance are different. For more mechanical background, see this technical overview of high pressure blower mechanics.
For laboratory-rated fan performance, ANSI/AMCA Standard 210-25 / ASHRAE 51-25 defines uniform test methods for determining airflow rate, pressure developed, power consumption, air density, rotational speed, and efficiency. NREL’s fan system sourcebook also highlights fan system performance as a complete system issue, not only a fan purchase decision.
The practical point is simple: before approving a blower, confirm the actual pressure drop, not only the desired airflow.
Which Blower Design Fits Which Industrial Duty?
The right high pressure blower design depends on the application. Clean air, dusty air, hot air, corrosive fumes, abrasive particles, and moisture-laden gas do not need the same construction.
| Industrial Duty | Design Direction | What to Check |
|---|---|---|
| Bag filter or dust collector | Radial or heavy-duty centrifugal design | Dust load, inlet loading, abrasion risk, cleaning cycle |
| Furnace or hot air system | High temperature plug or suitable heat-resistant design | Gas temperature, insulation, bearing isolation, expansion |
| Scrubber ID fan | Corrosion-resistant centrifugal design | Moisture, chemicals, droplet carryover, MOC |
| Dryer air circulation | Efficient centrifugal blower | Airflow uniformity, temperature, process pressure |
| Pneumatic conveying support | High pressure radial design | Solids loading, velocity, line pressure drop |
| Boiler FD or ID fan | Duty-specific centrifugal fan | Combustion air, flue gas, temperature, ash load |
| General ventilation | Axial or centrifugal depending on resistance | Volume, duct resistance, noise, layout |
For plant teams comparing options, the article on choosing the right high pressure blower gives a broader selection path. For process-side use cases, the guide on how high pressure blowers improve industrial processes can help connect design choice with plant outcome.
AS Engineers manufactures centrifugal blower variants including backward curved, backward inclined, high pressure radial blade, exhauster radial, high temperature plug, and exhauster air handling blowers. For duties where standard catalog selection is not enough, a make-to-order blower may be safer than forcing a standard model into a difficult application.
How Do Temperature, Dust Load and Gas Properties Change the Design?
Temperature, dust load, humidity, density, and corrosive gas change blower design more than many buyers expect. A blower selected for ambient clean air may fail quickly in hot, dusty, wet, or corrosive duty.
Hot gas affects density and material stress. Lower gas density can change mass flow and pressure behavior. High temperature may require suitable material, shaft design, insulation, bearing protection, and safe motor positioning. For furnace, kiln, hot air generator, and dryer duties, a high temperature plug blower can be considered when the temperature and layout justify it.
Dust load affects impeller wear, casing wear, vibration, and cleaning frequency. Fine dust can accumulate inside the impeller and create imbalance. Abrasive particles can erode blade edges. Sticky dust can reduce effective flow area. Moisture can combine with dust and form deposits that increase load and vibration.
Corrosive gases require MOC discussion before final selection. Stainless steel, coatings, hard facing, or other material decisions should not be treated as cosmetic upgrades. They decide service life and downtime risk.
This is also why blower performance should be reviewed as part of the system. For airflow-focused optimization, refer to maximizing airflow with high pressure blowers.
What Should Buyers Check Before Approving a Blower Drawing?
Before approving a high pressure blower drawing, check whether the design matches the installed system, not only the quotation.
A serious buyer should confirm inlet orientation, outlet orientation, rotation direction, foundation size, motor position, coupling or belt drive arrangement, maintenance access, inspection door location, drain requirement, damper position, flexible connection, vibration isolation, and duct connection loads.
The hidden question is: “Will this blower operate correctly after installation, or only look correct in the drawing?”
Use this buyer decision checklist:
| Approval Point | Why It Matters | Red Flag |
|---|---|---|
| Inlet and outlet direction | Prevents duct mismatch | Site ducting not checked |
| Rotation direction | Protects airflow and impeller operation | No arrow or unclear GA drawing |
| Motor mounting | Affects access and alignment | Motor blocks maintenance side |
| Bearing access | Reduces downtime during service | Bearings difficult to reach |
| Flexible connection | Reduces duct stress transfer | Rigid duct load on casing |
| Drain and cleanout | Important for wet/dusty duty | No cleaning access |
| Foundation and grouting | Controls vibration | Weak civil base |
| VFD suitability | Helps control airflow | Fixed-speed blower for variable process |
For buyers planning RFQ or technical comparison, AS Engineers’ centrifugal blower product page is the right starting point. For aftermarket issues, retrofitment, repair, alignment, balancing, and AMC, review centrifugal blower services.
How Does Testing, Balancing and Installation Protect Performance?
Testing, balancing, and installation decide whether the design performs in the plant. Even a correct blower design can underperform if the impeller is not balanced, the ducting is poor, the base is weak, the coupling is misaligned, or the system pressure was estimated incorrectly.
The first warning sign is often vibration. Do not ignore it. Vibration can come from impeller imbalance, dust buildup, bearing wear, coupling misalignment, weak foundation, resonance, or flow instability. Noise can indicate high velocity, turbulence, duct restriction, poor inlet condition, or inefficient operation.
Performance testing should verify airflow, pressure, current draw, temperature rise, vibration, and operating point. If the motor current is higher than expected, do not simply increase motor size. First check damper position, system resistance, actual pressure, rotation direction, and impeller condition.
For post-installation reliability, use this page on testing your high pressure blower for quality and performance. For maintenance planning, see expert tips for maintaining high pressure blowers and troubleshooting common blower issues.
What Data Should You Send for a Reliable High Pressure Blower Design?
The quality of blower design depends on the quality of input data. A weak RFQ creates weak selection. A proper RFQ gives the engineering team enough information to select impeller type, casing arrangement, MOC, motor power, speed, drive, mounting, and service factor correctly.
Send this data before final sizing:
- Required airflow in CFM, m³/hr or Nm³/hr
- Required static pressure or total pressure
- Gas or air temperature at inlet
- Gas composition, humidity and density if known
- Dust load, particle type and abrasiveness
- Corrosive or explosive nature of the gas, if applicable
- Application: bag filter, scrubber, furnace, dryer, conveying, boiler, ventilation or process air
- Duct layout, bend count, duct length, damper and filter details
- Site altitude and ambient condition
- Operating hours per day and duty cycle
- Required MOC or corrosion allowance
- Motor preference, VFD requirement and available power supply
- Space constraints and inlet/outlet orientation
- Existing blower data if replacement or retrofitment is needed
For global buyers, also send frequency, voltage, inspection requirement, documentation requirement, packing requirement, and project location. A blower built for a local replacement job and a blower built for an export project may need different documentation and inspection planning.
FAQs
1. What is the most important factor in high pressure blower design?
The most important factor is the operating point: required airflow at required pressure under actual site conditions. Impeller type, motor power, casing design, MOC, RPM and drive arrangement should all support that operating point. Selecting only by HP or inlet/outlet size can lead to poor performance.
2. Which impeller is best for a high pressure blower?
There is no single best impeller for every duty. Backward curved impellers are often preferred for clean air and efficiency-focused applications. Radial blade and high pressure radial designs are often better for heavy-duty pressure, dust load, and harsher industrial service. Final choice depends on application, pressure, dust, temperature and gas properties.
3. Why does a blower fail even when the motor HP is correct?
A blower can fail despite correct motor HP if the system resistance, rotation direction, inlet condition, duct design, impeller balance, gas density, or pressure estimate is wrong. Motor HP is only one part of selection. The blower must match the actual airflow-pressure requirement and plant layout.
4. How does dust affect high pressure blower performance?
Dust can wear impeller blades, build up on rotating parts, create imbalance, increase vibration, reduce airflow and damage casing surfaces. Sticky or abrasive dust needs special attention during impeller selection, MOC selection, cleaning access planning and maintenance scheduling.
5. When should a custom high pressure blower be selected?
A custom blower should be considered when the duty involves unusual temperature, high dust load, corrosive gas, non-standard orientation, limited space, special MOC, export documentation, retrofitment constraints, or a process condition that does not fit a standard model safely.
If you are selecting a high pressure blower for a bag filter, scrubber, furnace, dryer, boiler, pneumatic conveying line or process ventilation system, do not finalize the model only from airflow and motor HP. Share your airflow, pressure, temperature, dust load, gas condition, duct layout and site constraints with AS Engineers for engineering review.
